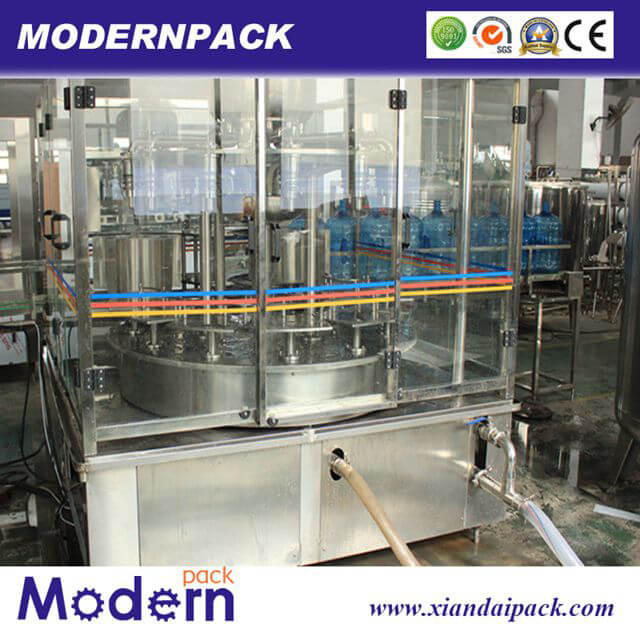

QGF-X model is used for 3/5 gallon,6 gallon barrel filling pure water production line, the whole machine gets the functions of rinsing, filling and capping together, it is the ideal equipment for producing mineral-water, distilled water and pure water.
Capacity: 1200-3000 bottle in one hour (bph)
Automatic machine
CE SGS certificate
1) 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2) Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3) Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4) With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5) Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows.
Main Technical Parameters:
| Model | QGF-1200 | QGF-2000 | QGF-3000 |
| Filling heads(rotary filler) | 12 | 16 | 24 |
| Volume (L) | 18.9 (can adjusting) | ||
| Barrel size (mm) | φ270×490 (can by the order) | ||
| Capacity (BPH) | 1000-1200 | 1800-2000 | 2600-3000 |
| Gas pressure (mpa) | 0.6-0.8 | ||
| Gas consumption (m3/min) | 2.2 | ||
| Motor power(Kw) | 9.2 | 11 | 12.3 |
| Rated voltage(V) | 380V/50Hz (can by the order) | ||
| Outline dimension(mm) | 3850×1800×1800 2560×2350×2750 | 4550×1800×1800 3100×2800×2750 | 6550×1800×1800 3500×2200×2750 |
| Weight(kg) | 42000 | 5500 | 7500 |
